High display no dark corner LED square hotel spotlights
Application
1.all-round 360 production line cutting group stop workflow, enabling automatic tube feeding, automatic feed, automatic cutting, automatic transmission operation.
2.Using KASRY Nesting programming system as a major programming tool, the software programming platform AUTOCAD basic, simple, graphical and intuitive, feature-rich, it can greatly improve operational efficiency.
3.High-end three-dimensional flexible robotic cutting applications, to achieve bevel cutting function, the pipe and the torch using the servo positioning function .
Other Attributes
Can cut carbon steel, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, H-beam, I-beam, angle, channel, etc. The device is widely used in various kind of pipes profile processing field, shipbuilding industry, network structure, steel, marine engineering, oil pipelines and other industries.
Specification
|
Product name |
WATTAGE |
VOLTAGE |
LM/W |
CRI |
SIZE(mm) |
Cut out |
|
LED hotel spotlights |
7W |
AC220V-240V |
75 |
Ra90 |
L62xW62xH85 |
L55xW55 |
|
LED hotel spotlights |
12W |
AC220V-240V |
75 |
Ra90 |
L85xW85xH85 |
L75xW75 |
|
LED hotel spotlights |
24W |
AC220V-240V |
75 |
Ra90 |
L103xW103xH130 |
L95xW95 |

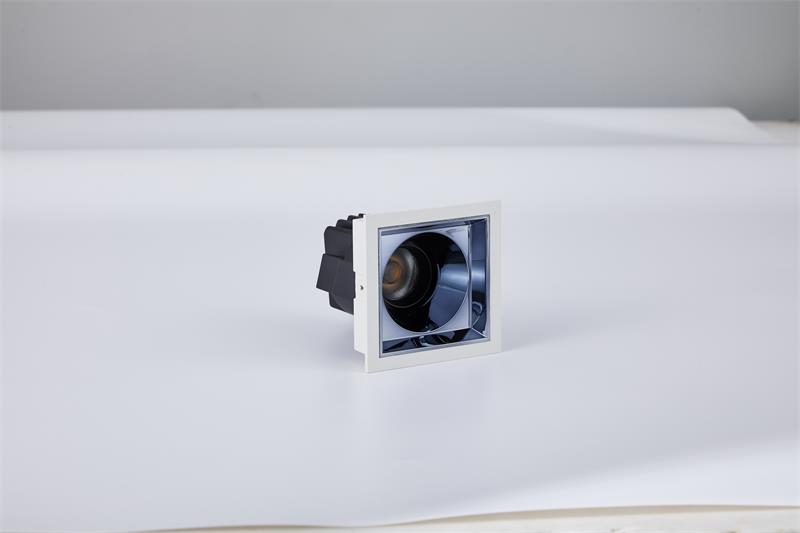

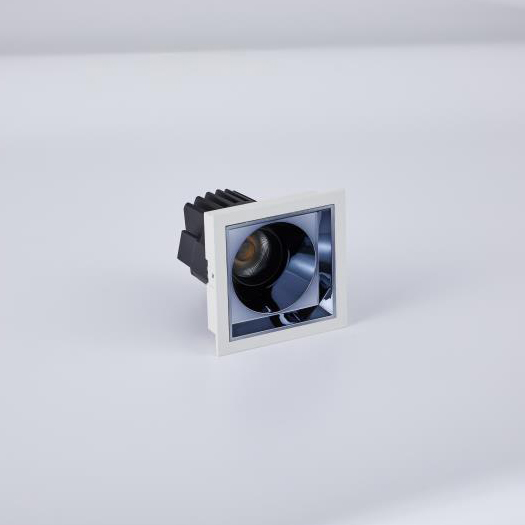

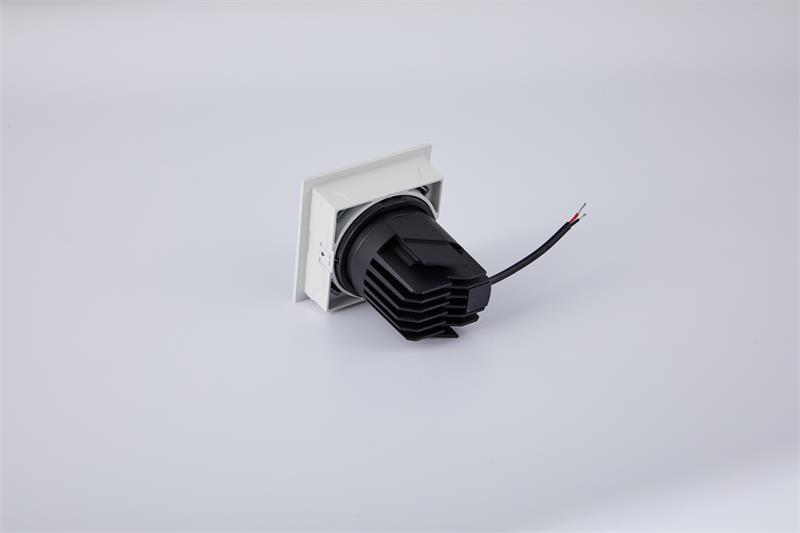

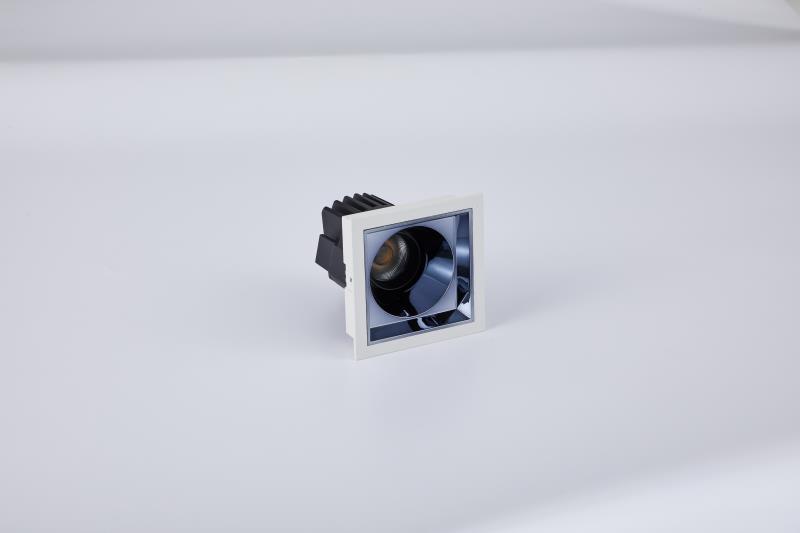

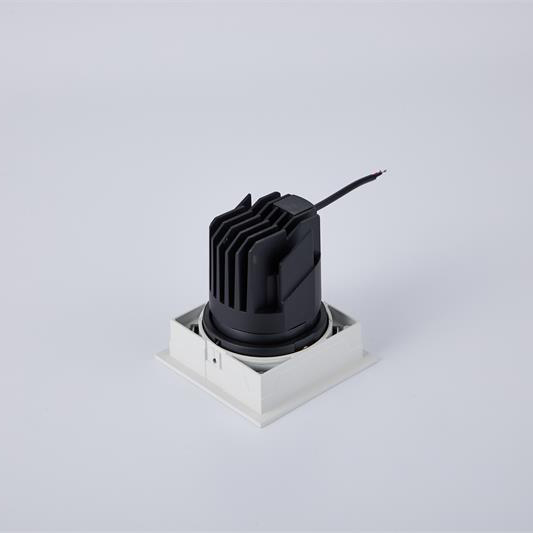

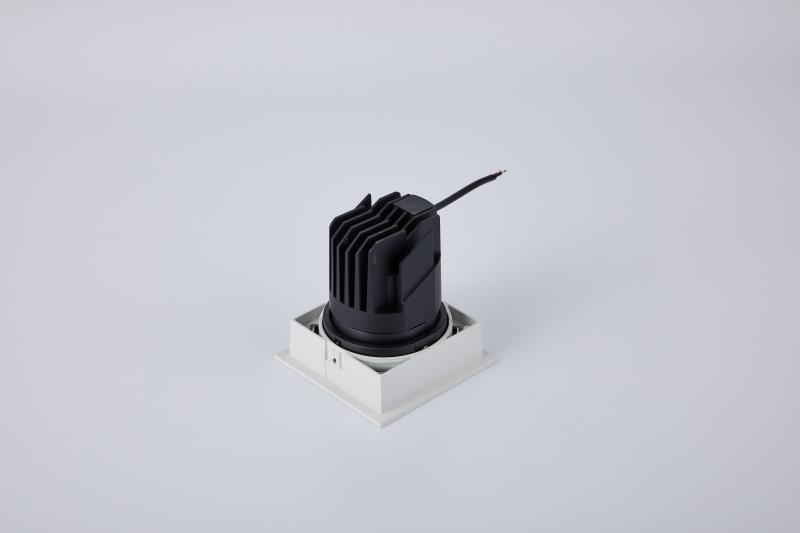

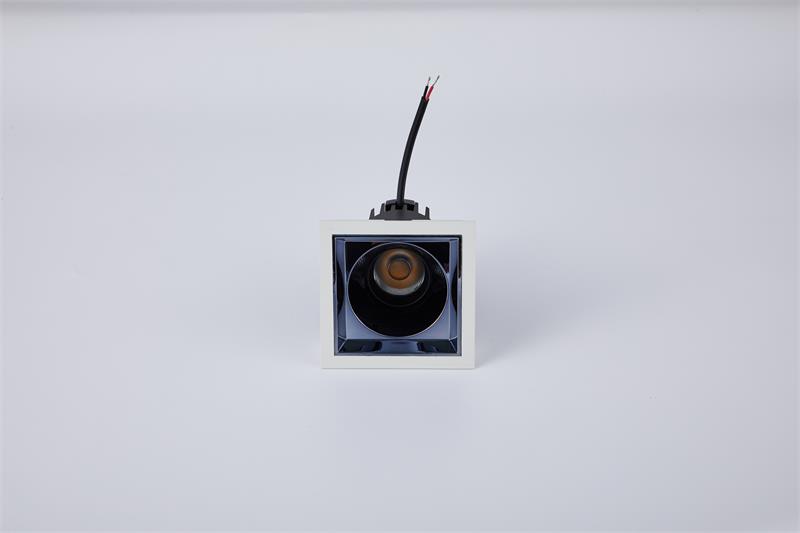

Designed for high-end hotels, clubs, commercial Spaces and other scenes, this LED square spot light combines modern aesthetics and high-performance lighting technology to create exquisite and efficient lighting solutions. The lamp adopts embedded installation, simple square appearance with white PC+ADC12 material lamp body, both lightweight and durable, protection level up to IP20, suitable for indoor dry environment.
Excellent light source performance: Equipped with the same Fang An Zetong high color rendering full spectrum COB light source, color rendering index Ra≥90, real color restoration, highlighting the texture of space. Provide 3000K (warm yellow), 4000K (neutral light), 6500K (cold white) three color temperature options, to meet the needs of different atmosphere; The beam Angle covers 15°, 24°, 36°, 55°, accurately controlling the light distribution to meet the key lighting or flood lighting scenes. Light efficiency up to 75lm/W, energy efficient, with 7W, 12W, 24W multi-power options, flexible response to various spatial brightness needs.
Professional drive and stable power supply: Adopt Igor high-quality drive power supply (model LS-8-160 ST2E /LS-12-300 ST2E, etc.), support AC220V-240V wide voltage input, power factor PF≥0.9, effectively reduce energy consumption, ensure long-term stable operation. The light source module can be configured with 2B12C or 4B12C chip, and the light spot is uniform without stabs, which improves the visual comfort.
Flexible installation and detailed design: Provide three opening sizes (55×55mm/75×75mm/95×95mm) and corresponding lamp body sizes, suitable for different ceiling structures. The reflector can be selected in black, white, gun black, bright silver four colors, perfect into the decorative style. The control mode is conventional switch control, easy to operate.
Application scenario: Suitable for hotel lobby, corridor, art display area, window and other places, through the precise light beam to create a sense of space hierarchy, improve the st
