Lamp waterproof IP level science
In modern lighting applications, the protection ability of lamps directly affects their service life and safety, especially in wet, dusty or outdoor environments. **IP Protection Rating (Ingress Protection Rating), as an internationally accepted assessment standard, quantifies the dustproof and waterproofing capabilities of lamps and lanterns respectively through two numbers to help users quickly judge their application scenarios.
#### **IP level structure and definition **
The IP level consists of an "IP" prefix and two numbers, such as IP65:
- ** The first number (dust class, 0-6) ** : indicates the protection ability of the lamp against solid foreign objects (such as dust, tools). For example, level 5 stands for "dust", allowing a small amount of dust to enter but not affecting the function; Grade 6 is completely sealed and completely insulated from dust.
- ** The second number (waterproof rating, 0-9) ** : reflects the waterproof performance, the larger the number, the stronger the protection. For example, Level 5 is resistant to water spray, Level 7 supports short-term immersion (1 meter depth /30 minutes), and Level 8 is suitable for long-term diving environments.
#### ** IP level requirements in different scenarios **
- ** Indoor dry environment ** : such as offices or corridors, IP20 (no waterproof, only 12mm or more foreign bodies) can meet the needs.

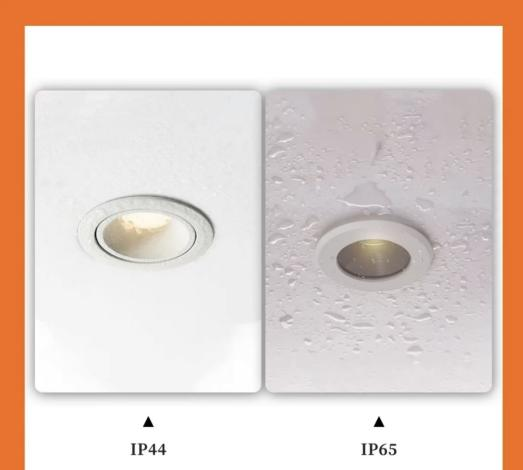

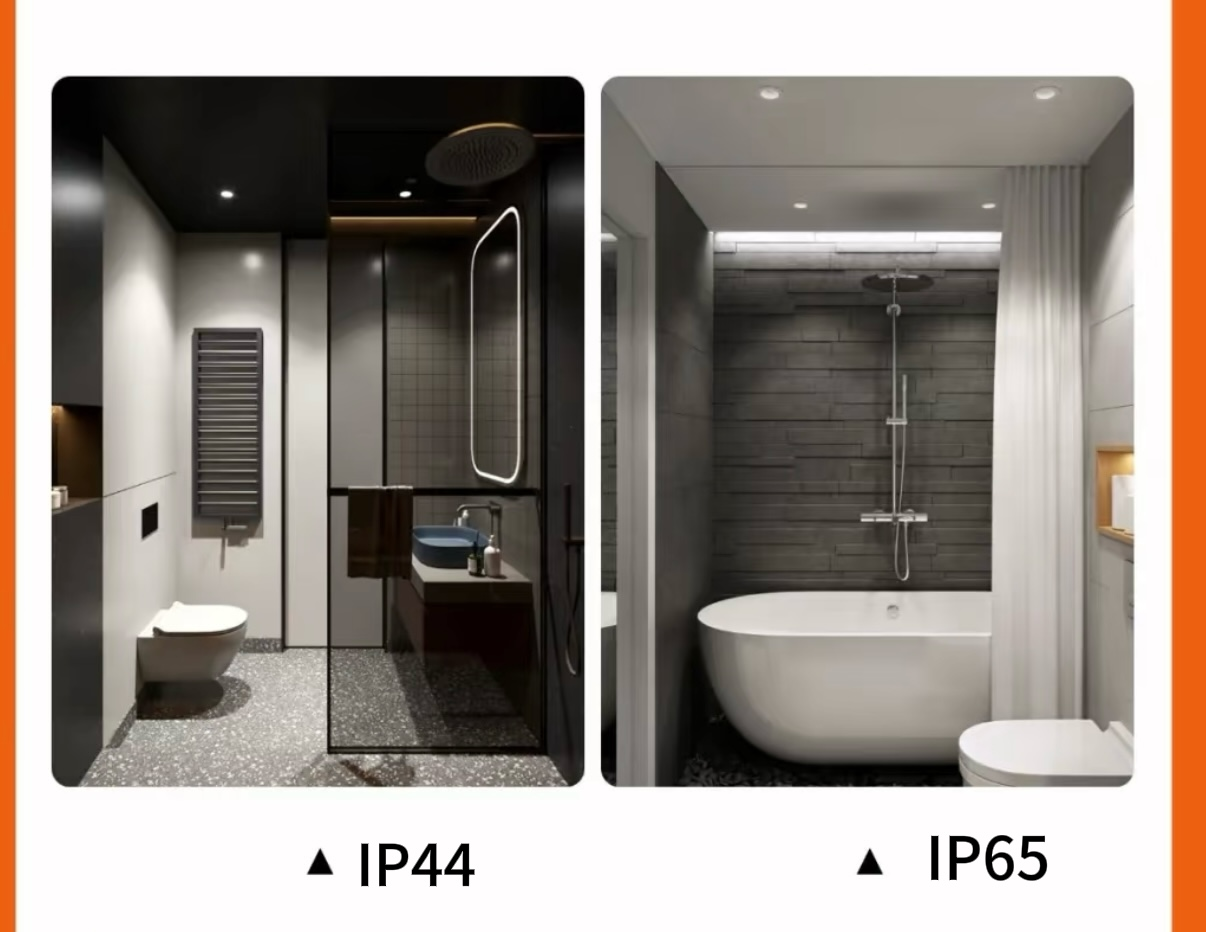

- ** Humid area ** : IP44 is recommended in the non-shower area of the bathroom (anti-splash + anti-foreign body above 1mm), and IP65 is required in the shower area (completely dust proof + anti-spray).
- ** Outdoor and industrial environment ** : Outdoor lamps need at least IP65 to cope with rain and dust; Due to contact with oil and metal chips, machine tool lamps usually require IP65 or more to ensure tightness and corrosion resistance.
- ** Underwater or extreme environment ** : pool lights and underwater lights need IP68 to support long-term underwater work.
#### **IP Grade Testing and Standards **
IP grades are tested according to the International Electrotechnical Commission (IEC) **IEC 60529** standard, such as:
- ** Waterproof test ** : IPX5 simulates water spraying, IPX7 immersing the lamp in a water depth of 1 meter for 30 minutes.
- ** Dust Test ** : IP6X is required to verify complete dust resistance in a closed sand and dust environment.
#### ** Key tips for choosing luminaires **
- ** Clear use environment ** : outdoor or humid scenes need priority waterproof level (second digit ≥5), dusty environment need dust level ≥5.
- ** Focus on sealing design ** : High IP grade lamps usually use silicone seals, anti-corrosion materials (such as stainless steel) and special packaging processes.
- ** Verification of the certification mark ** : Check the product label or test report at the time of purchase to ensure compliance with the declared IP level.
By reasonably selecting the IP level, users can significantly improve the safety and durability of the lamps and avoid problems such as short circuit and aging caused by environmental erosion. In the future, with the development of intelligent lighting and industrial automation, the demand for high-protection lamps will further expand.
