Grille Spotlights
0102030405
Simple and stylish embedded LED ceiling spotlights
Application
1.all-round 360 production line cutting group stop workflow, enabling automatic tube feeding, automatic feed, automatic cutting, automatic transmission operation.
2.Using KASRY Nesting programming system as a major programming tool, the software programming platform AUTOCAD basic, simple, graphical and intuitive, feature-rich, it can greatly improve operational efficiency.
3.High-end three-dimensional flexible robotic cutting applications, to achieve bevel cutting function, the pipe and the torch using the servo positioning function .
Other attributes
Can cut carbon steel, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, H-beam, I-beam, angle, channel, etc. The device is widely used in various kind of pipes profile processing field, shipbuilding industry, network structure, steel, marine engineering, oil pipelines and other industries.
| product name | WATTAGE | VOLTAGE | LM/W | CRI | SIZE(mm) | cut out |
| LED Grid Spotlight | 35w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 95*95*150mm | / |
| LED Grid Spotlight | 24W | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 95*95*150mm | / |
| LED Grid Spotlight | 18w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 75*75*95mm | / |
| LED Grid Spotlight | 15w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 75*75*95mm | / |
| LED Grid Spotlight | 12w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 55*55*95mm | / |
| LED Grid Spotlight | 12w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 55*55*95mm | / |
| LED Ceiling Spotlight | 35w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | φ95*150mm | / |
| LED Ceiling Spotlight | 24W | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | φ95*150mm | / |
| LED Ceiling Spotlight | 18w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | φ75*95mm | / |
| LED Ceiling Spotlight | 15w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | φ75*95mm | / |
| LED Ceiling Spotlight | 12w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | φ55*95mm | / |
| LED Ceiling Spotlight | 12w | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | φ55*95mm | / |

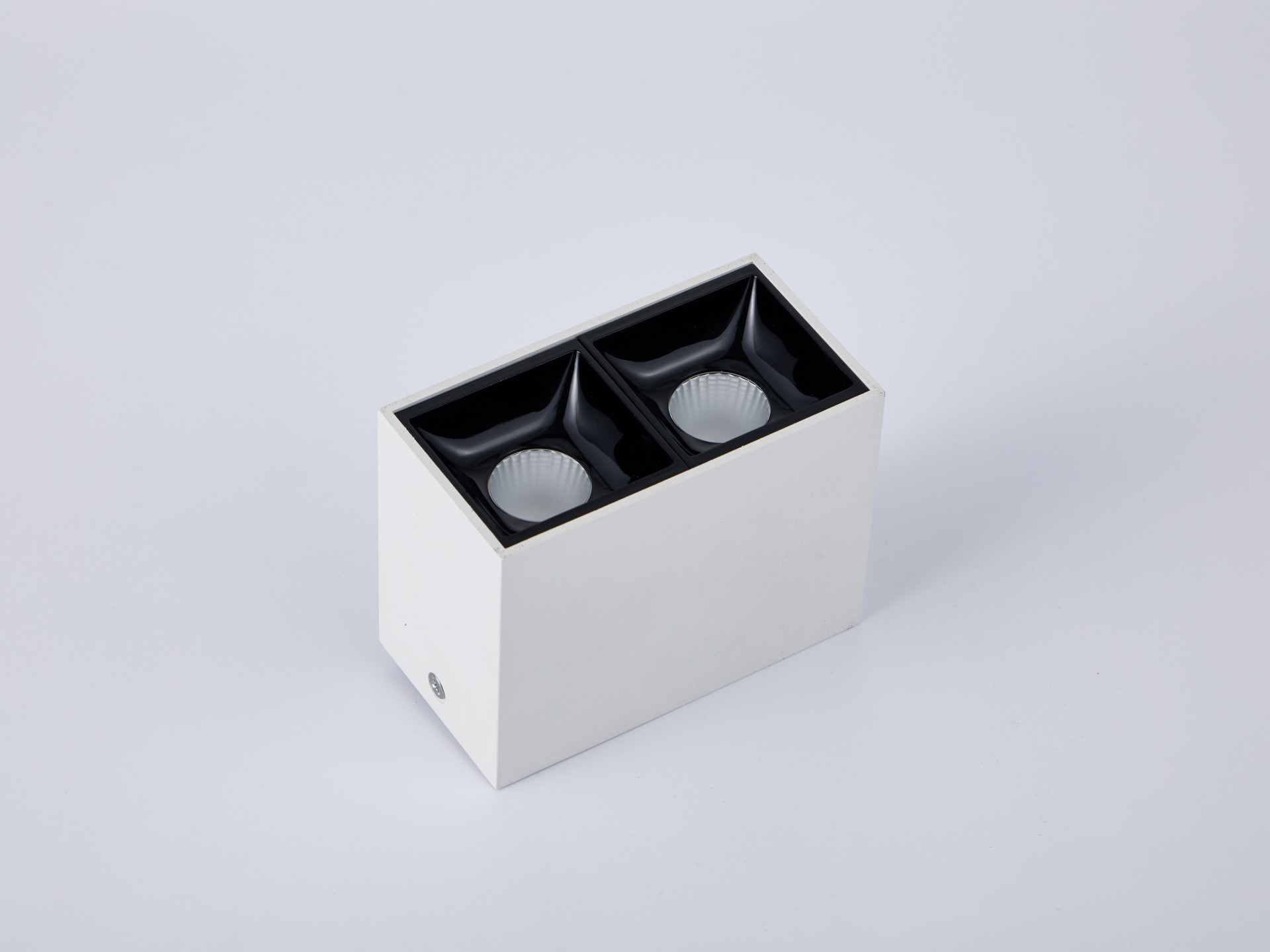

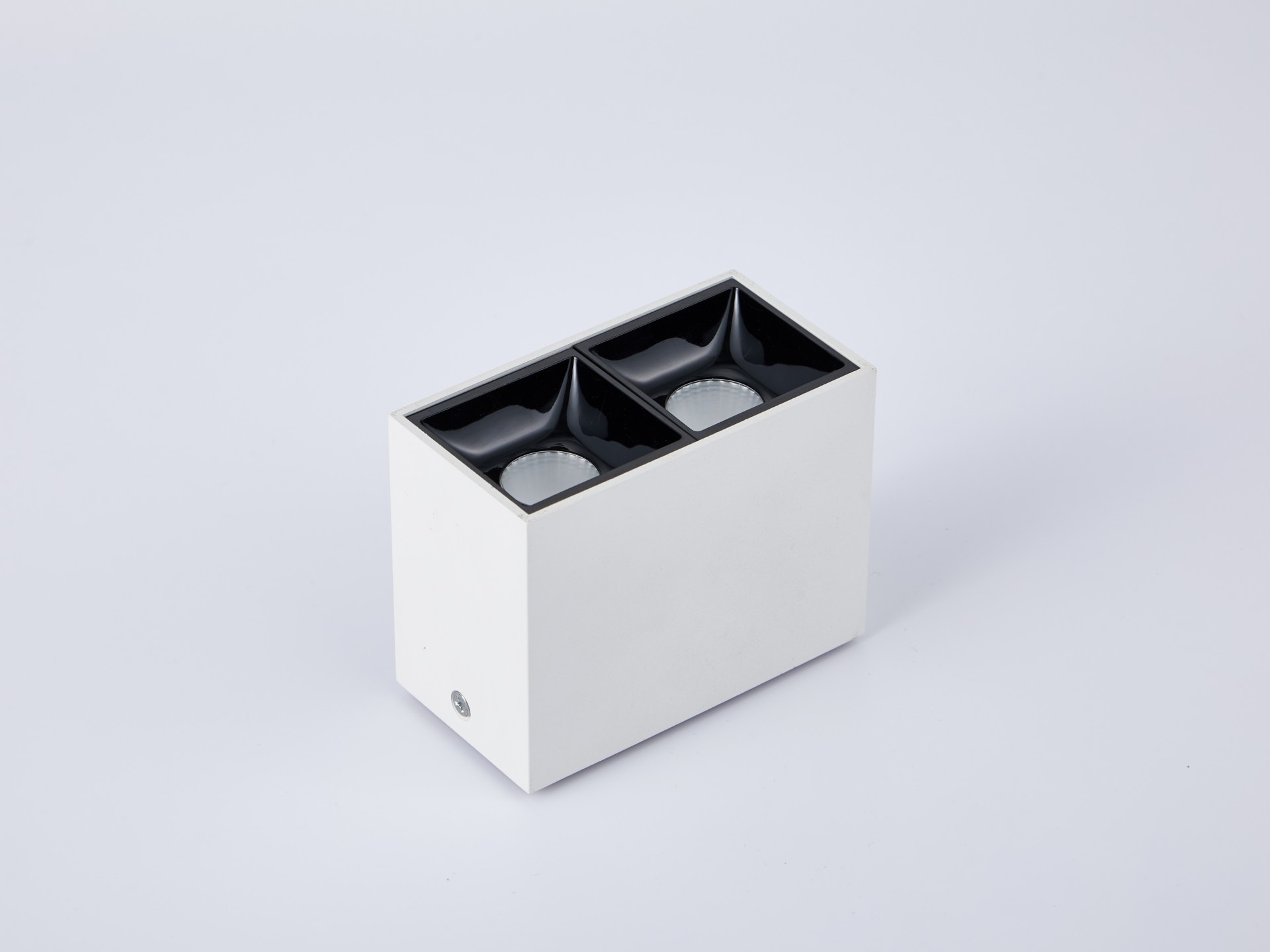

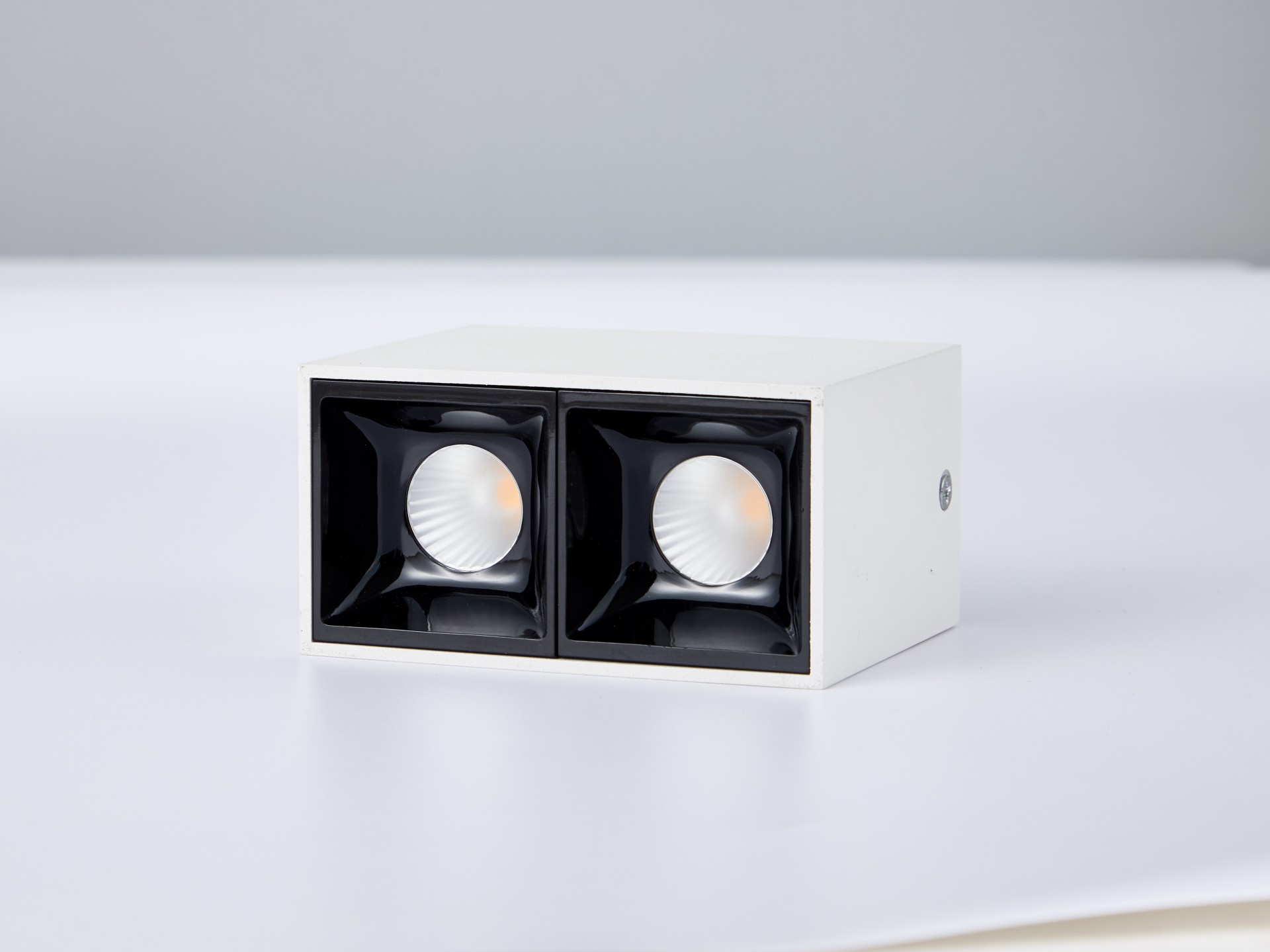

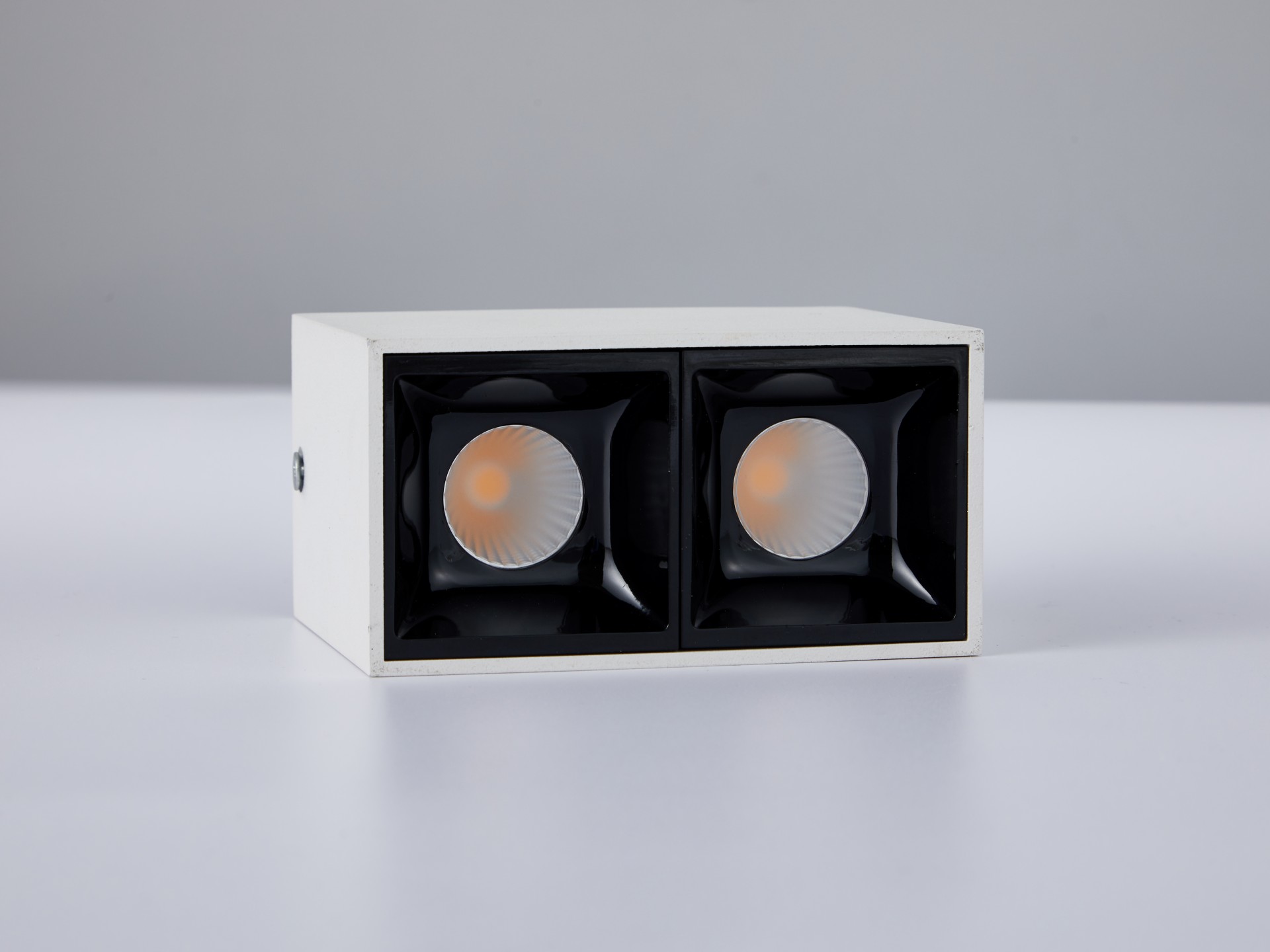

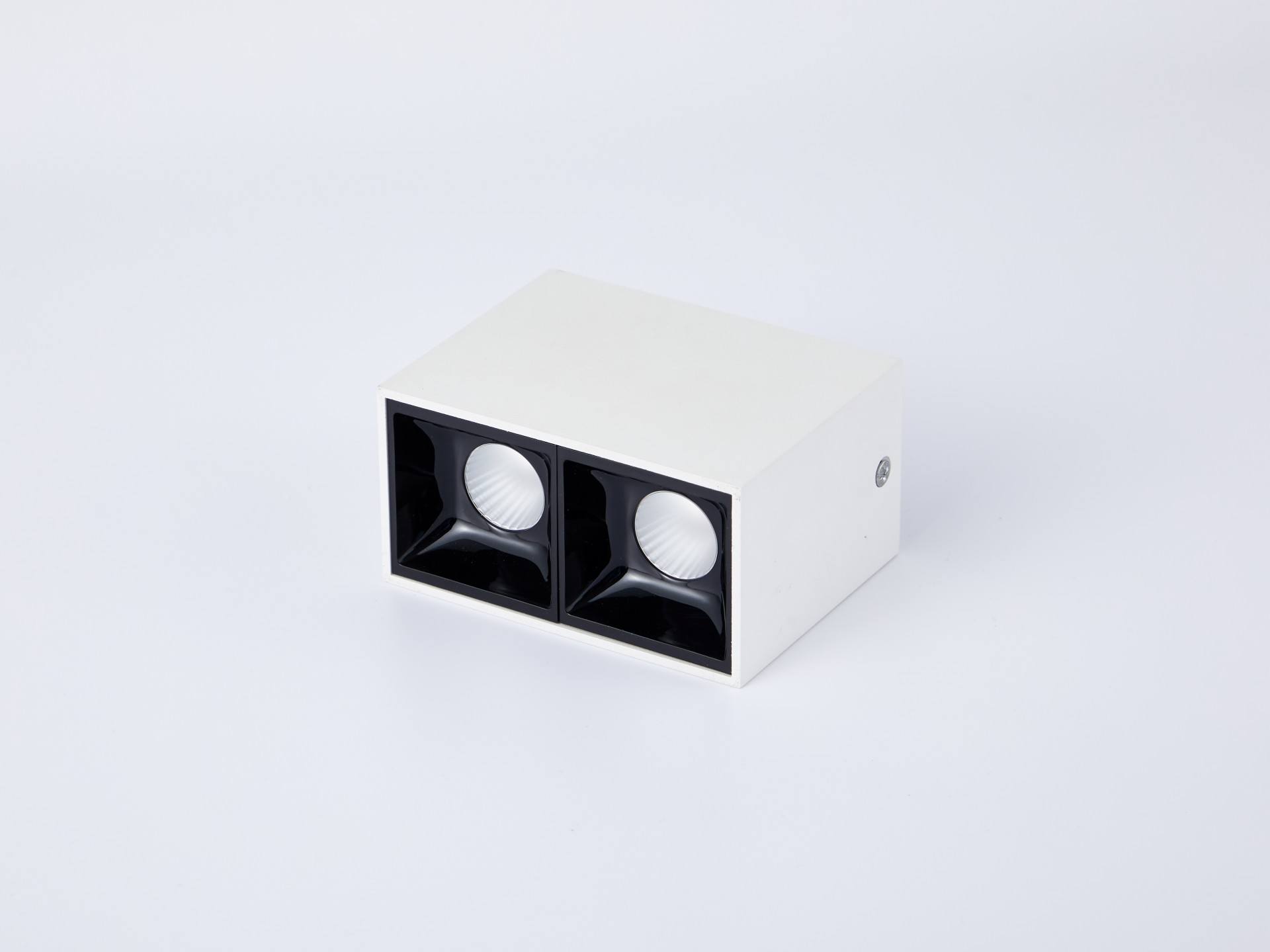

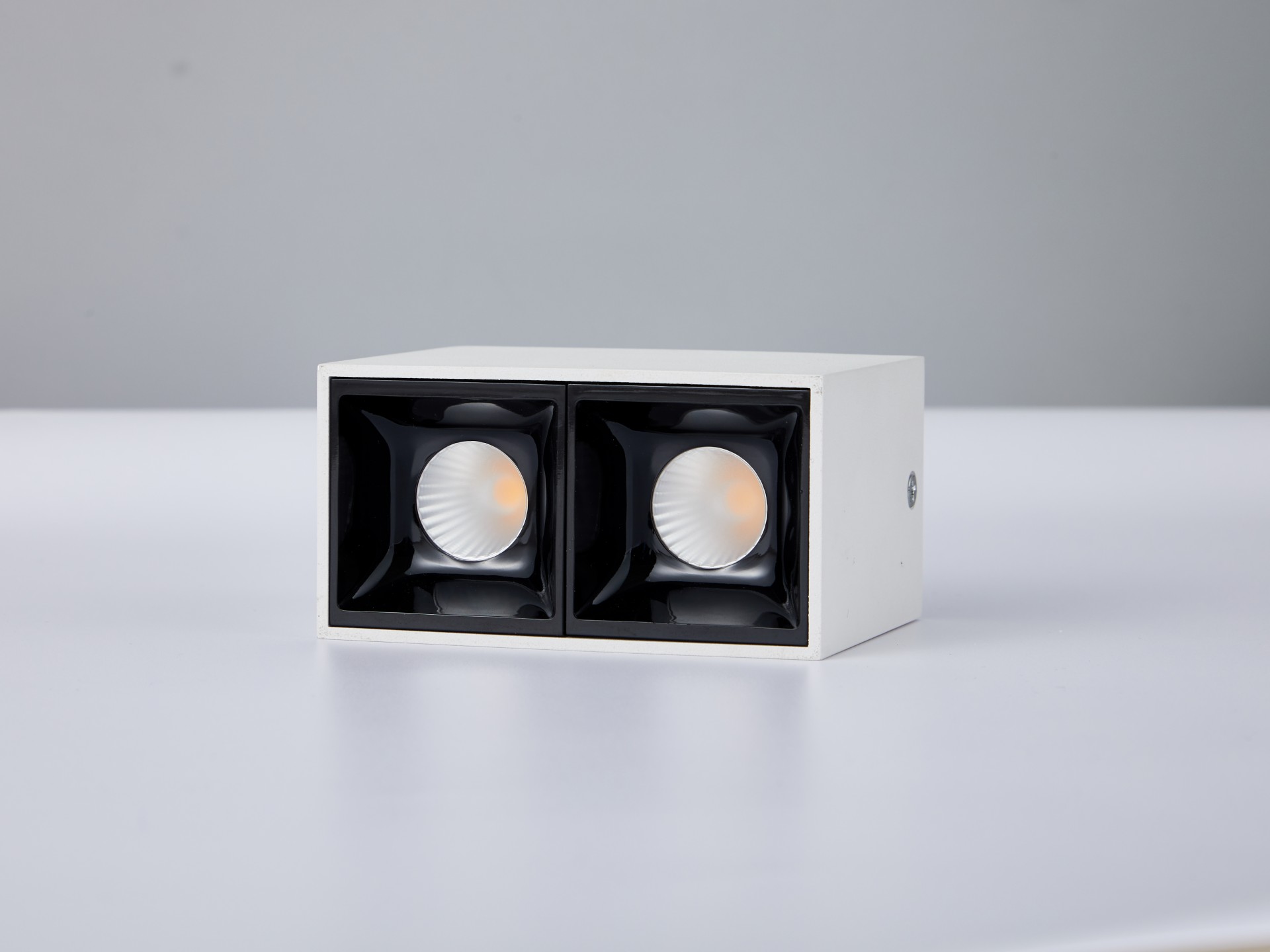

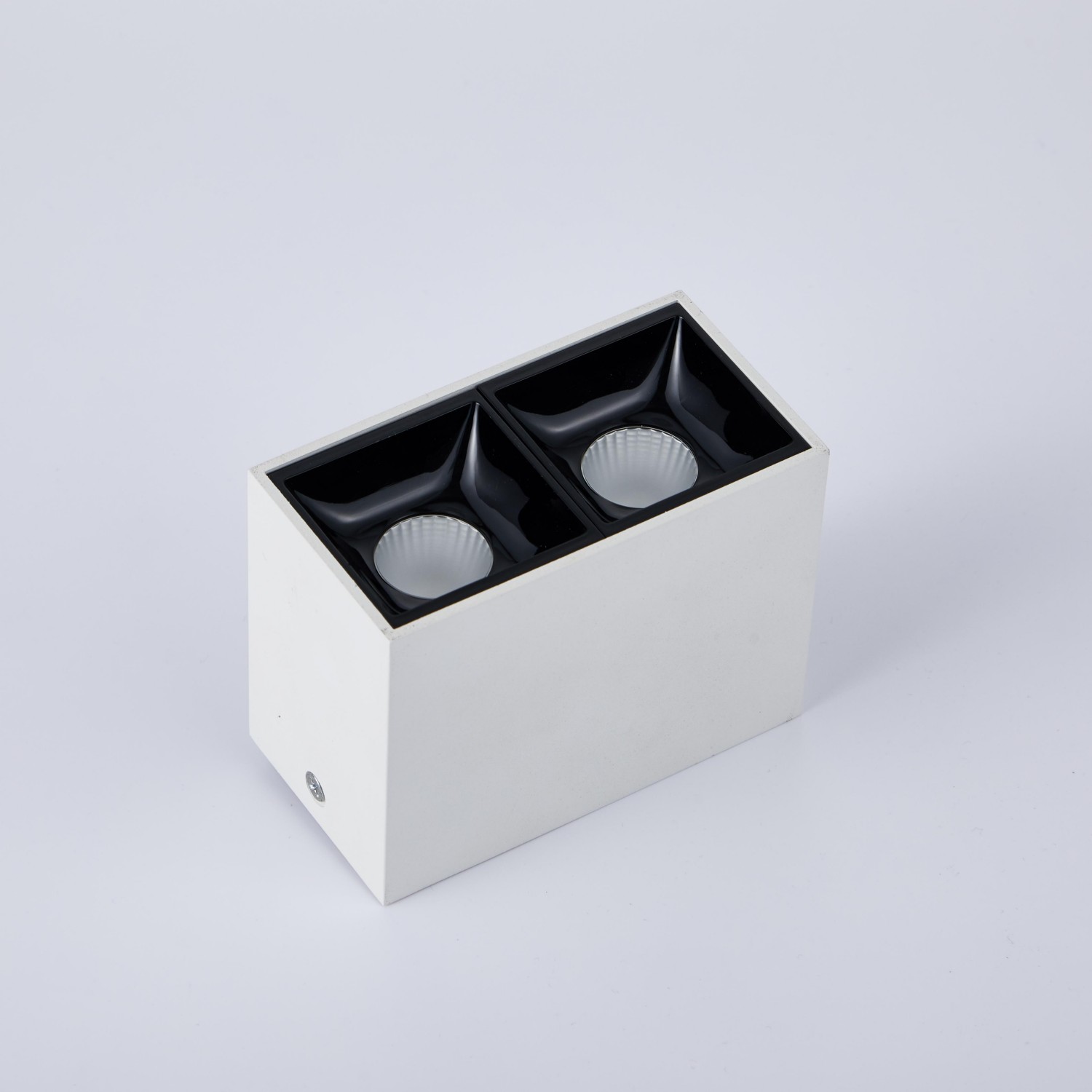

| LED Grid Spotlight | 2*18W | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 185*95*110mm | / |
| LED Grid Spotlight | 2*15W | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 150*75*95mm | / |
| LED Grid Spotlight | 2*12W | AC220V (Unit: V) | ≥80LM/W | 80/90/95 | 110*55*70mm | / |
High display LED ceiling spotlights: the ideal light to light up your home and business
This ceiling spotlight is designed for you who are looking for a high quality lighting experience. It adopts the ceiling installation method, simple and convenient installation, easy to integrate into all kinds of Spaces, whether it is a warm home environment, or a business place full of style, can be perfectly adapted. The lamp body material is made of high-quality aluminum, which is not only durable, but also has excellent heat dissipation performance, effectively extending the service life of the lamp and reducing the trouble and cost of replacing the lamp.
The protection level reaches IP20, which can effectively protect the invasion of solid foreign bodies with a diameter greater than 12.5mm, although it is not suitable for particularly wet or dusty harsh environments, but in the general indoor environment, it is enough to stabilize the lighting function. Provide white and black two classic color choices, white pure and simple, black low-key calm, to meet the needs of different decoration styles, add unique charm to the space.
In terms of lighting parameters, it is even better. Rated voltage is AC220V, rated power 35w, power factor up to 0.9, energy saving and efficient, while ensuring sufficient brightness, effectively reduce energy consumption, help you save electricity costs. Light source from the well-known brand the same Fang An Zetong, providing high display/full spectrum options, color rendering index has 80/90/95 three levels of options, high color rendering index can highly restore the true color of the object, so that everything in the space shows the most natural and vivid appearance, whether it is to illuminate home decoration, or for commercial display, can make the visual effect more excellent.

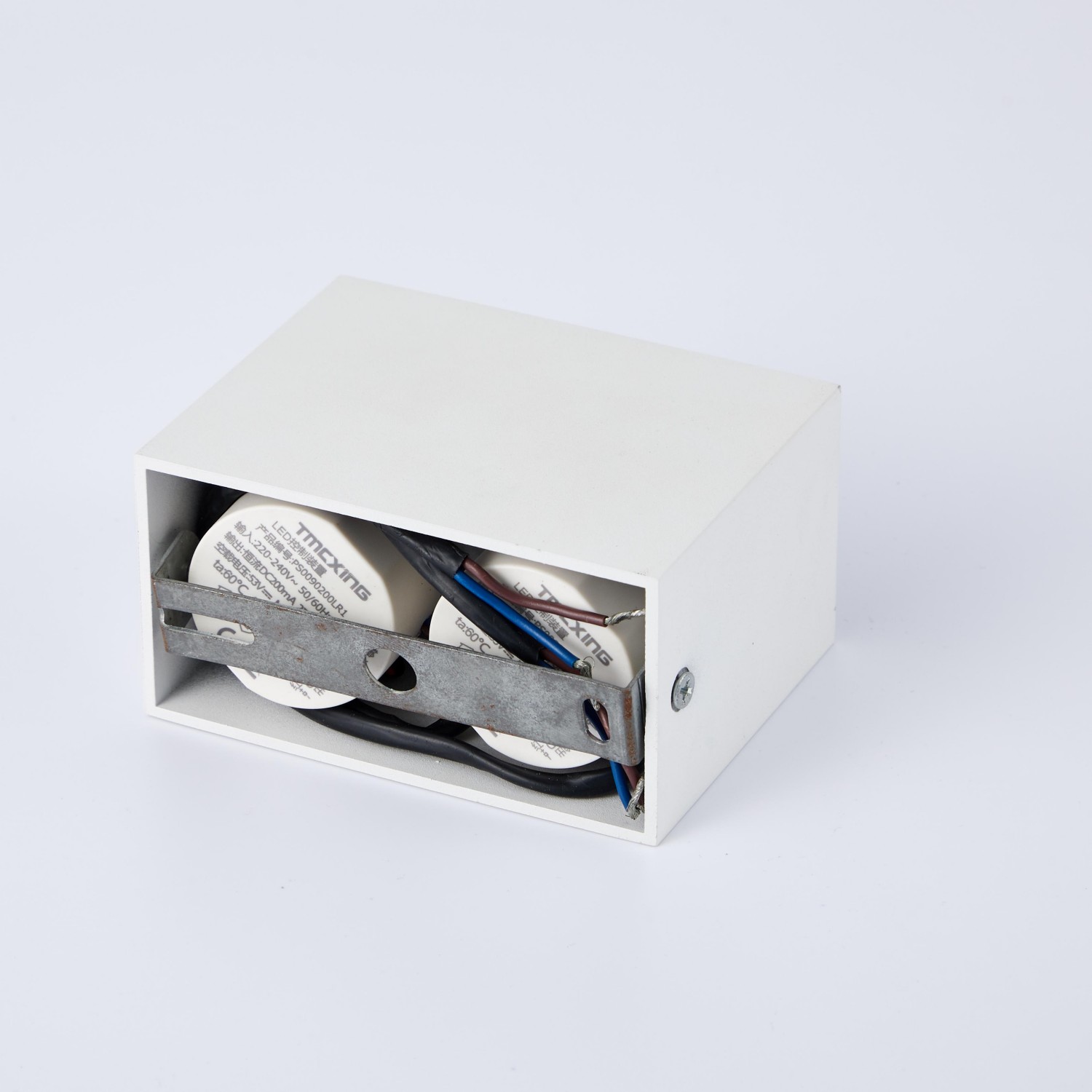

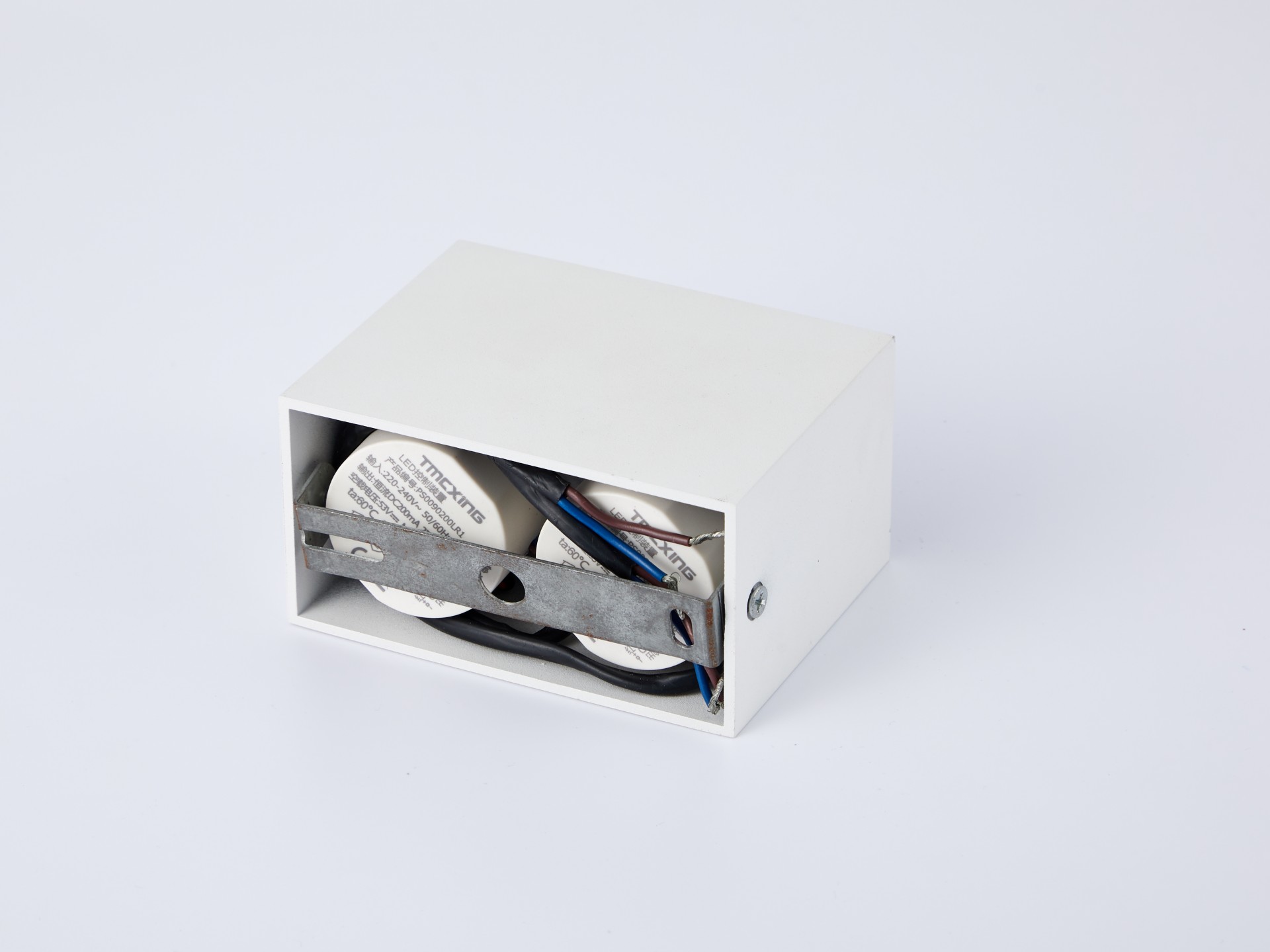

The color temperature covers 2700K-6500K, from warm white light to bright cold white light, to meet the lighting needs in different scenes. The beam Angle is 15°, 30°, 45° optional, 15° narrow beam Angle is suitable for key lighting, highlighting the display of items; 30° conventional beam Angle suitable for general lighting; A wide beam Angle of 45° provides a wider range of illumination. The light source specification is 6B12C single, with the driver specification PS0360900TNFR3, the light source type is COB, bringing stable and uniform light, no STB, no glare, to create a comfortable light environment for you.
